AllStar is a network of Amateur Radio repeaters, remote base stations and hot-spots accessible to each other via Voice over Internet Protocol. It is based on the open source Asterisk a powerful system capable of controlling one or more radios. It provides linking of these radio “nodes” to other systems of similar construction anywhere in the world via VoIP.

Basic Commands you can send to the Repeater are as follows:

GB3BP is a Full Duplex Repeater so remember that these commands can be sent at ant time even when the repeater is transmitting

*3 <Node Number> connect to Allstar node

*33 <Node Number> connect to EchoLink node (coming soon)

*73 Disconnect

*70 what is connected?

*80 play ID

*81 play the time

Short Cuts (used to move the Repeater around the Networks)

*51 disconnect and move to NWAG (North West Analogue Group Website)

*52 disconnect and move to FreeStar (FreeStar Allstar Network)

*53 disconnect and move to GB3PI (Cambridge Repeater Group)

*54 disconnect and move to CQUK (Fusion Network with access from Allstar)

*55 disconnect and move to HubNet (Hubnet Website)

*56 disconnect and move to Extended Freedom Network (EFN Website)

*57 disconnect and move to CQ Cumbria GB3CU (CQ-Cumbria Website)

Local Interest Links

*58 Not In Use

*59 Not In Use

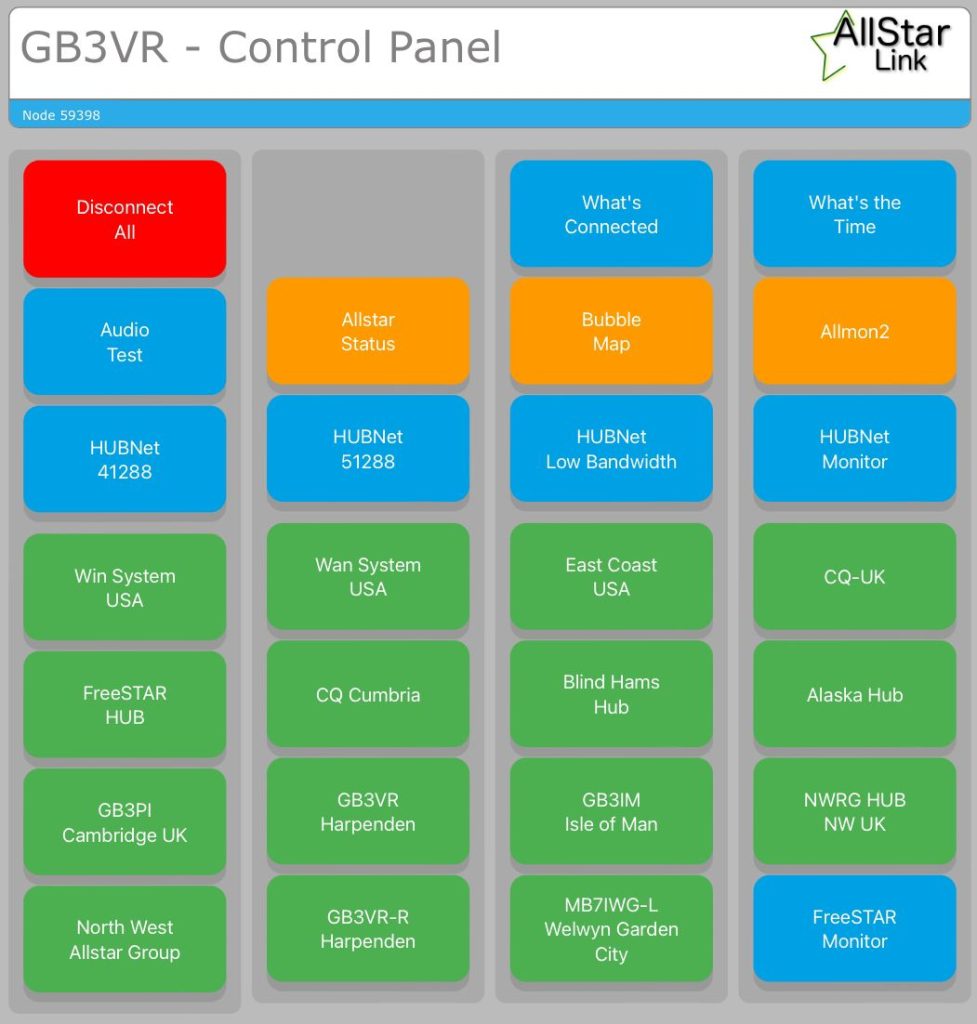

Control Panel (use the repeater callsign lower case for user name and password)

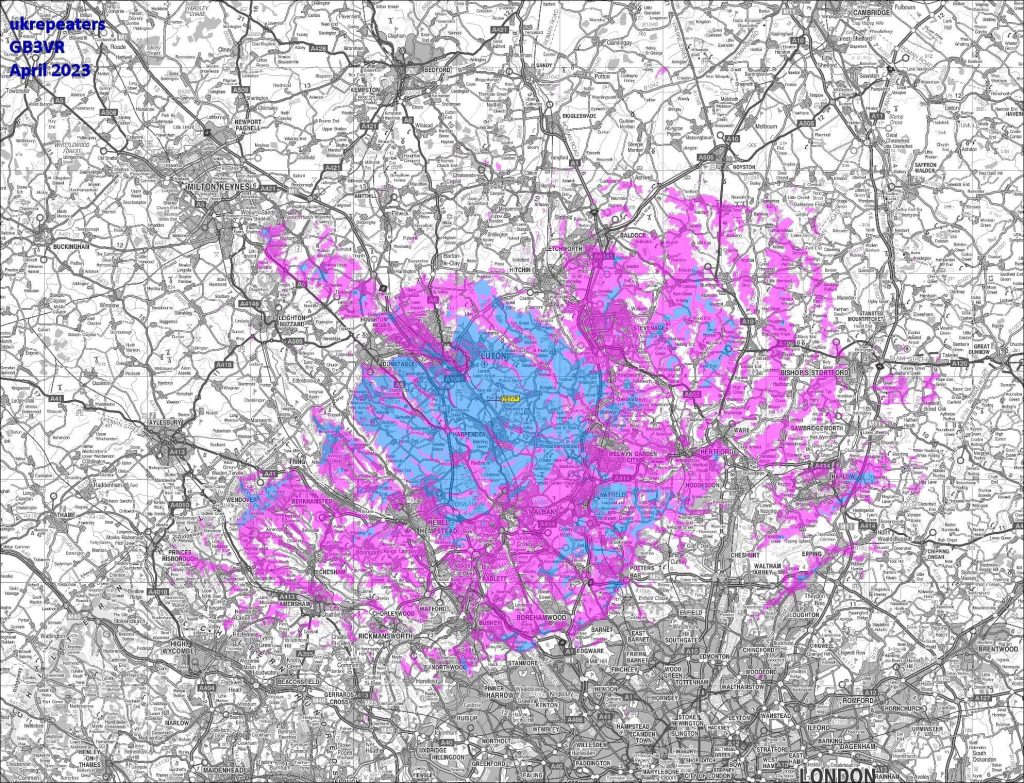

Coverage Map for GB3BP
